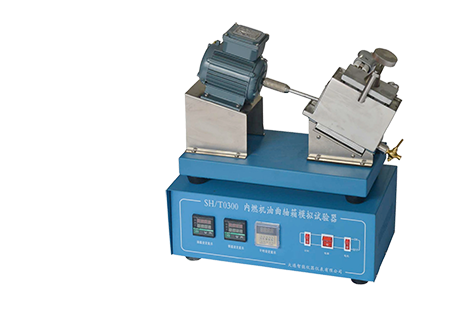

DZY-029|Internal-combustion Engine Oil Crankcase Simulated Test Apparatus(QZX method)

APPLICABLE STANDARD

SH/T0300

PERFORMANCE CHARACTERISTICS

The apparatus is applied to evaluating the thermal oxidization stableness of additives and that of internal-combustion engine oil with additives (the lacquering situation)
The apparatus employs the foreign advanced PID self-tuning temperature regulating system with digital display and low deviation as ±1℃.
The apparatus has advantages such as rapid warming, automatic timing, automatic power off and alarming
The test fuel tank is processed by special technique for oil tightness.
The aluminium heater for plate temperature and oil temperature acquires design patent and has long working life.

TECHNICAL INDICATORS

Power supply: AC220V±10％ 50Hz
Oil temperature: 150 ℃
Plate temperature: from 310 to 330℃
Temperature control precision:±1℃
Heating power: 0.3KW*2
Motor rotation speed: 1400r/min
Timing: from 0 to 99h59m59s
External dimension: 840*300*310 (mm)
