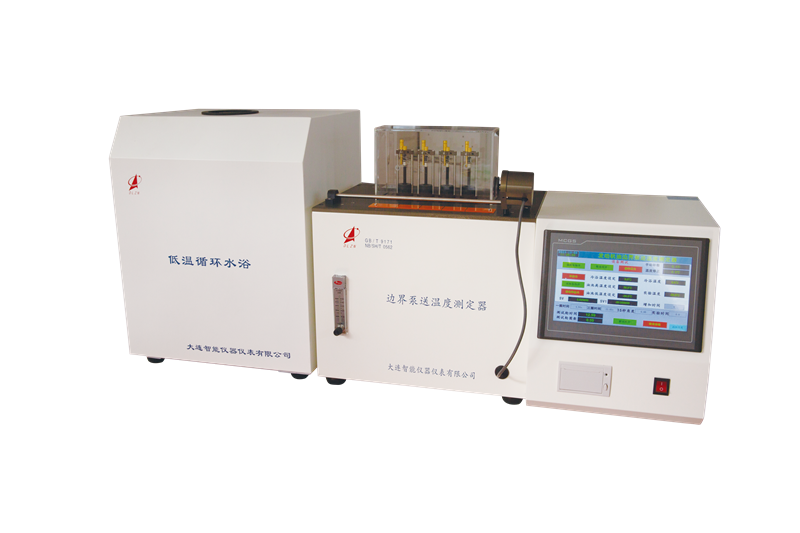

HOME > PRODUCTS > LUBRICATING OIL INSTRUMENT > DZY-006ZII Automatic Borderline Pumping Temperature Tester
ASTM D3829
GB/T 9171
ASTM D4684
SH/T 0562
① This instrument is equipped with a 10-inch color LCD touchscreen for effective human-machine interaction, displaying various parameters and operating states in real-time. The control system uses a programmable logic controller (PLC), ensuring precision and reliability.
② The operating interface allows users to select different standards and temperatures for testing. The temperature is automatically lowered at the rate specified by the standard, with precise control of the cooling rate.
③ Cooling method: Semiconductor refrigeration technology is used, providing fast cooling speed and precise, stable temperature control.
④ The instrument is equipped with a temperature calibration function.
⑤ The instrument is capable of calculating the borderline pumping temperature.
⑥ The instrument can be connected to a LIMS system.
① Viscosity measurement units: 4 units and 9 units
② Test temperature range: 80°C, -10°C, -15°C, -20°C, -25°C, -30°C, -35°C, -40°C
③ Temperature stability: ±0.1°C
④ Cleaning temperature setting: 50°C
⑤ Operating power supply: AC220V ± 22V, 50Hz
⑥ Main unit power: 1800W
⑦ Low temperature circulating bath power: 1600W
